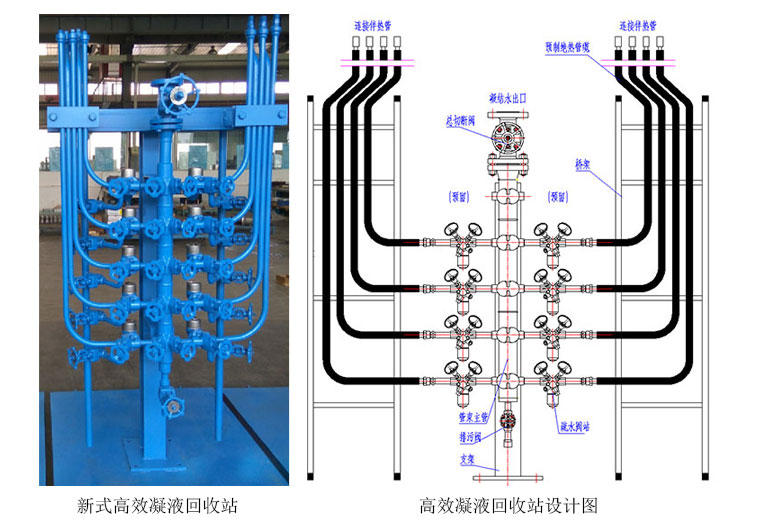

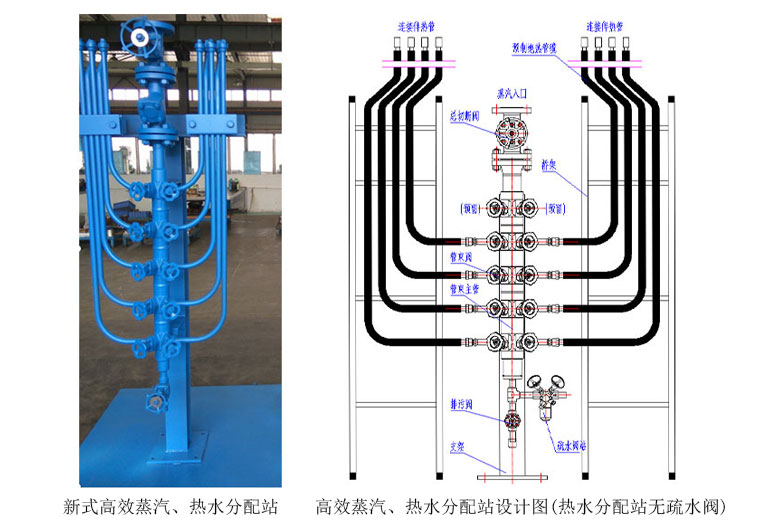

It is used in new high efficiency steam distribution station and condensate recovery station. It can realize multi-branch steam distribution and multi-branch condensate recovery of the inlet and outlet cut off.
Features:
1. It is the main component of steam distribution station and condensate recycling station.
2, the plunger type closing structure, high sealing, to ensure that the tube bundle assembly has a long service life.
3, the whole forging forming, internal high precision processing forming.
Advantages:

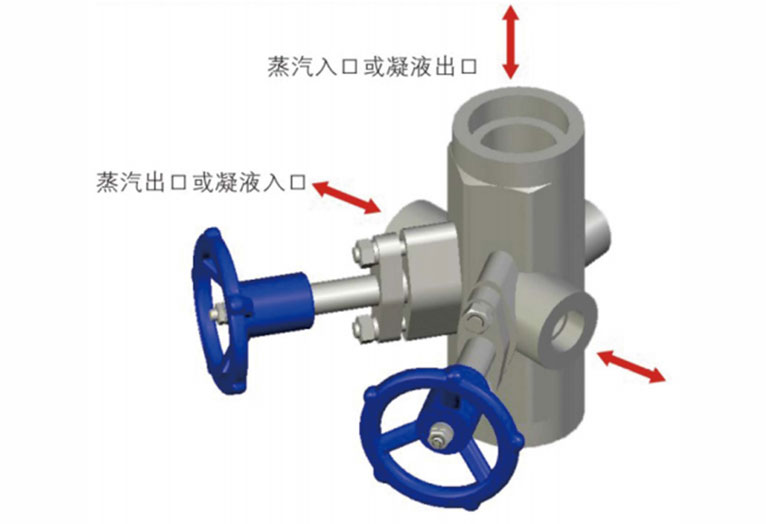

1. Built-in integrated plunger valve to minimize installation space.
2. Diversified assembly, high flexibility in the number of branch pipes.
3, large runner design, to meet the demand of heat tracing.

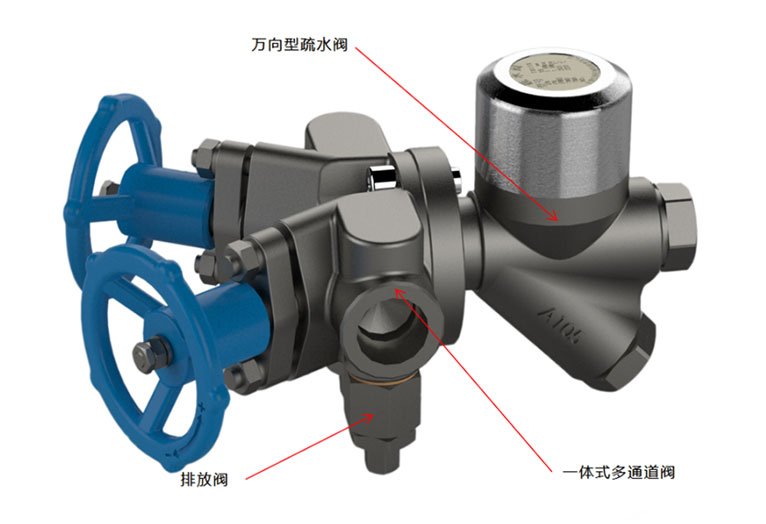

The multi-function trap station "integrates" a series of complex pipe valves into one, using all stainless steel forgings. Great space saving, reduce leakage point. Service life is far more than similar products.
Characteristics and advantages of trap station:
1. The multi-function valve station can be equipped with bimetallic, inverted bucket and disc traps with universal joints.
2, fully functional, with blowdown, valve front/valve back cut off, maintenance pressure relief drainage and other functions, can be online test the use of the trap status.
3, is the main component of condensate recycling station, can also be used independently as a trap set.
4, integrated design, reduce installation and maintenance costs.
5, simple maintenance, online maintenance, does not affect the normal work of the system.
Types of traps available for connection:

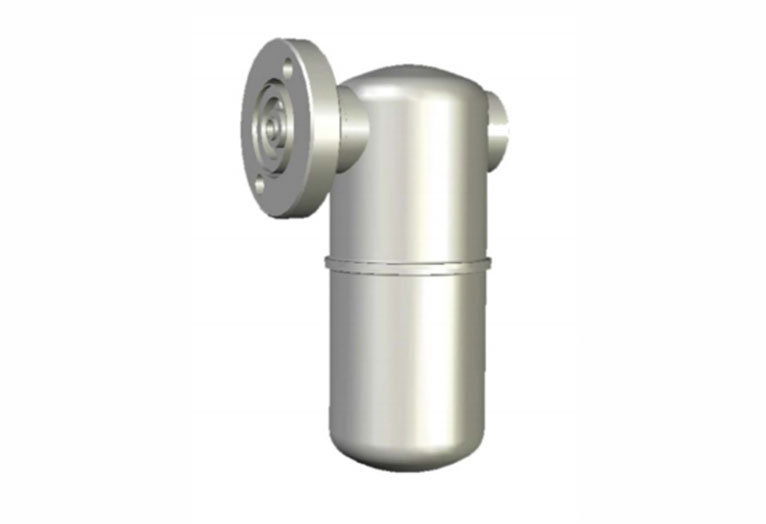

1, Inverted bucket trap
Features/Performance:
The spherical seal is used to increase wear resistance, and the spool is deeper into the seat, thus maintaining the tightness. The spool support is fitted with a specially designed "super lever". The spool is "free floating" within the spool bracket, avoiding rigid collisions when closed.
Effectively conserve energy, bucket inside the water seal and lifting mechanism, so there is no steam leakage.
The top of the bucket is provided with an overflow vent, which can effectively prevent steam lock and air blockage.
Water shock resistance, can withstand high back pressure (up to 90%).
A 360° rotary joint is designed for easy installation.
Use:
Suitable for medium and low pressure steam condensate pipelines and equipment.
2, Thermostatic trap
Features/Performance:
The discharge temperature can be adjusted when the pipe network is running, and the sensible heat in the high temperature condensate water can be effectively used. The energy saving effect is excellent, and the service life is long and easy to maintain.
Water shock resistance, good air exhaust performance, no noise, easy to adjust, open quickly.
Accurate and reliable operation, no steam leakage.
Using a unique SCCV closing mode, reliable closing, durable.
Compact structure, convenient installation and maintenance.
Use:
Used for steam main, steam tracing pipeline and small heating equipment.
Factory adjustment state :0.5MPa 100C.

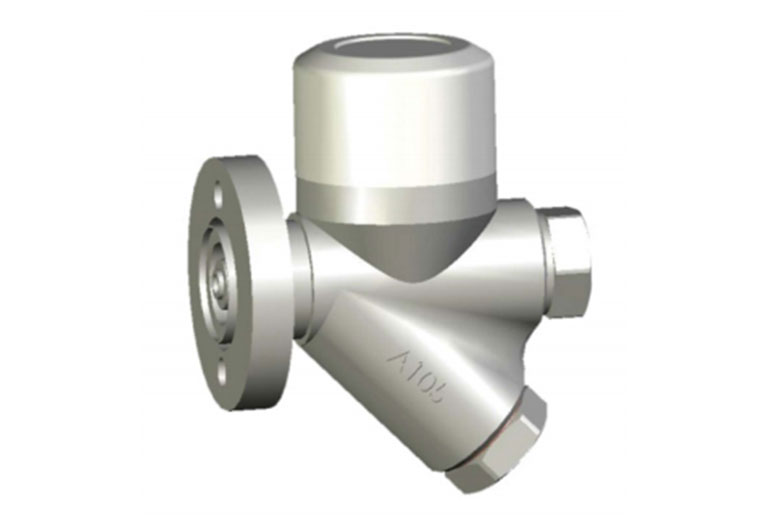

3, Thermal power trap
Features/Performance:
Replaceable hardened stainless steel seat/disc work surface for long life and easy maintenance.
With air insulation structure, not affected, more reliable work.
Built-in filter screen, not affected by impurities.
The valve body and valve cover with thread connection, can realize online maintenance. Mount in any direction.
Use:
Widely used in petroleum, chemical, metallurgy and other low pressure steam tracing pipeline and small heating equipment.
