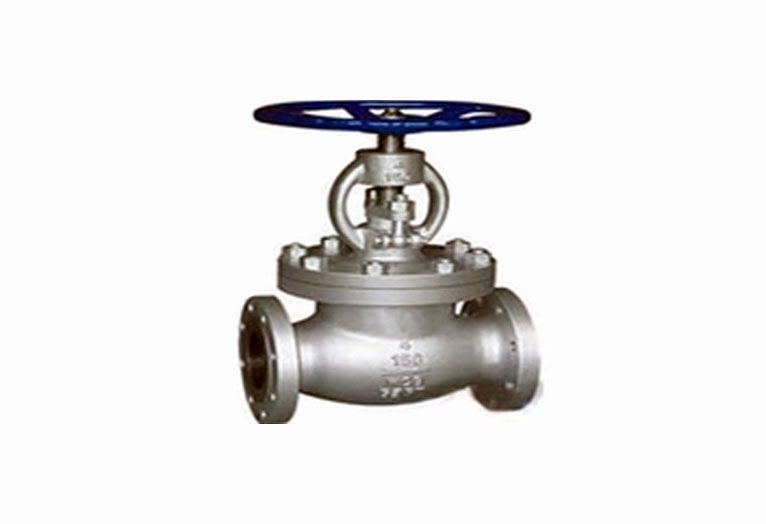

American standard globe valve is a common truncation valve, mainly used to connect or truncate the medium in the pipeline, generally not used to regulate the flow.
American standard globe valve main structural characteristics:
- Reasonable structure, reliable sealing, excellent performance, beautiful shape
- Sealing surface of valve disc and valve seat is made of Stetaili cobalt-based hard alloy surfacing, wear-resistant
- Valve stem after conditioning and surface nitriding treatment, have good corrosion and abrasion resistance
- Various pipe flange standards and flange sealing surface types can be used
- Valve body material variety complete, packing, gasket according to the actual conditions or user requirements reasonable selection, can be applied to a variety of pressure, temperature and medium conditions
- The reverse seal is made of threaded sealing seat or body surfacing austenitic stainless steel. The reverse seal is reliable. The replacement and maintenance of packing can be carried out without stopping the machine, which is convenient and fast
American standard globe valve performance specification parameters:
- Nominal pressure: Class150 ~ 2500Lb
Nominal diameter: 1/2" ~ 18"
- Body material: cast steel/carbon steel/stainless steel (WCB/304/316/316L)
- Connection mode: flange, welding
- Operating temperature range: -20 ~ 425℃
Applicable media: water, steam, oil, nitric acid, acetic acid, etc

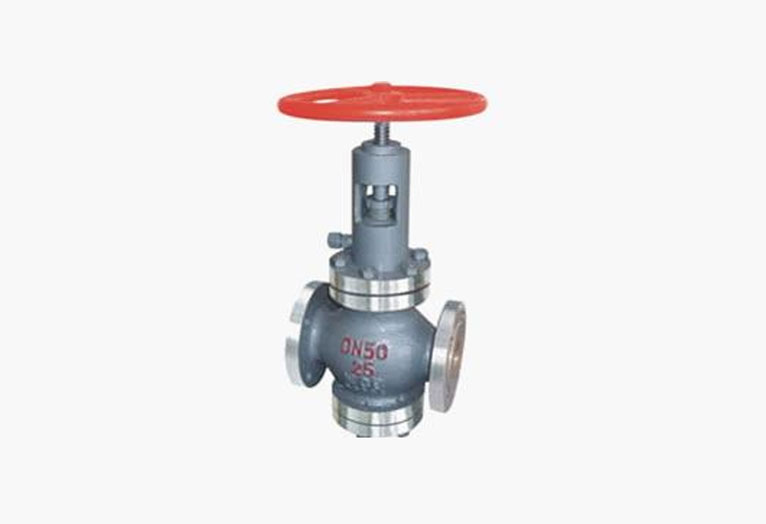

Throttling cutoff vent valve (also valve sleeve blowdown valve) is a new throttling, cutoff, vent products, the valve adopts cage fan legion throttling, with multiple throttling effect, throttling effect is obvious, reliable sealing, easy operation and maintenance.
Throttle cut-off blowdown valve (also valve sleeve blowdown valve) main structural characteristics:
- Double seal (hard and soft seal) to make the seal reliable
- The sealing surface of the seat adopts taper sealing, which is conducive to cleaning the dirt attached to the sealing surface of the valve itself
- The valve disc is provided with a balance hole, piston seal, to ensure stable operation under the condition of full differential pressure opening/closing, light and flexible opening and closing torque
- With throttling and cut-off (seal for zero leakage) function, the throttling part is separated from the sealing surface, in order to reduce airflow to the erosion of the seal
- The packing adopts V-shaped packing structure with self-sealing ability, no adjustment, easy to open and close
- The stuffing box is equipped with an auxiliary sealing grease injection structure, so that the valve packing sealing performance is reliable
- Large drain holes are provided at the bottom
Throttle cut-off blowdown valve (sleeve blowdown valve) performance specification parameters:
Nominal pressure: PN1.6 ~ 25.0MPa
Nominal diameter: DN25 ~ 250mm
- Body material: cast steel/carbon steel/stainless steel
- Connection mode: flange
- Operating temperature range: -29℃ ~ 350℃
- Applicable media: oil, natural gas, water, etc
Working principle and use of the product:

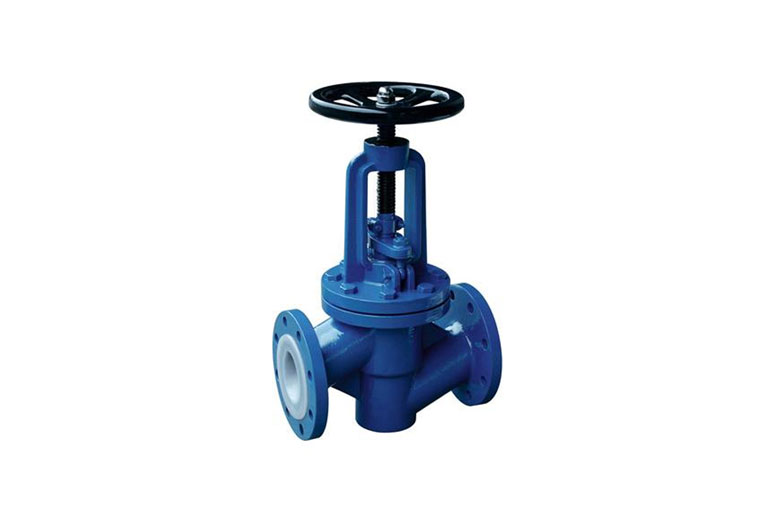

Fluorine-lined globe valve is divided into: Straight through fluorine lined stop valve, straight flow fluorine lined stop valve, Angle fluorine lined stop valve, with compact structure, flexible opening and closing, corrosion resistance, short stroke (generally nominal diameter 1/4) and other advantages, is widely used in petroleum, chemical and other piping system to do truncation medium, but it needs to be emphasized that fluorine lined stop valve is strictly prohibited to do flow regulation, In order to avoid the throttle orifice produced by high speed dielectric flow erosion damage sealing surface.
Fluorine lined stop valve is suitable for all kinds of concentrations of aqua royalty, sulfuric acid, hydrochloric acid, hydrofluoric acid and various organic acids, strong acids, strong oxidants, FEP is also suitable for all kinds of concentrations of strong alkali organic solvents and other corrosive gases, liquid media pipeline use.
Product structure features:
1, plastic lining J41 straight through type, J45 straight slip type, J44 Angle type globe valve, has the advantages of compact structure, flexible opening and closing, strong corrosion resistance, short travel (generally called 1/4) and so on. It is widely used in petroleum, chemical and other pipeline systems as truncation medium, but the plastic lined globe valve is strictly prohibited to be used as flow regulation, so as to avoid the high-speed medium flow erosion at the throttle orifice damage sealing surface.
2, disc and stem design as a whole structure, to prevent the possibility of internal parts out of the valve body due to pipeline pressure fluctuations, compact structure, safe use.
Angle globe valve is a common truncation valve, mainly used to connect or truncate the medium in the pipeline, generally not used to regulate the flow.
Main structural characteristics of Angle globe valve:
- According to the national standard GB12235, reasonable structure, reliable sealing, excellent performance, beautiful shape
- Sealing surface of valve disc and valve seat is made of Stetaili cobalt-based hard alloy surfacing, wear-resistant
- Valve stem after conditioning and surface nitriding treatment, have good corrosion and abrasion resistance
- Various pipe flange standards and flange sealing surface types can be used
- Valve body material variety complete, packing, gasket according to the actual conditions or user requirements reasonable selection, can be applied to a variety of pressure, temperature and medium conditions
- The reverse seal is made of threaded sealing seat or body surfacing austenitic stainless steel. The reverse seal is reliable. The replacement and maintenance of packing can be carried out without stopping the machine, which is convenient and fast
Performance specification parameters of angular globe valve:
Nominal pressure: PN1.6 ~ 16.0MPa
Nominal diameter: DN15 ~ 450mm
- Body material: cast steel/carbon steel/stainless steel/forged steel (WCB/304/316/316L)
- Connection mode: flange, welding
- Operating temperature range: -20 ~ 550℃
Applicable media: water, steam, oil, nitric acid, acetic acid, etc
Working principle and use of the product:

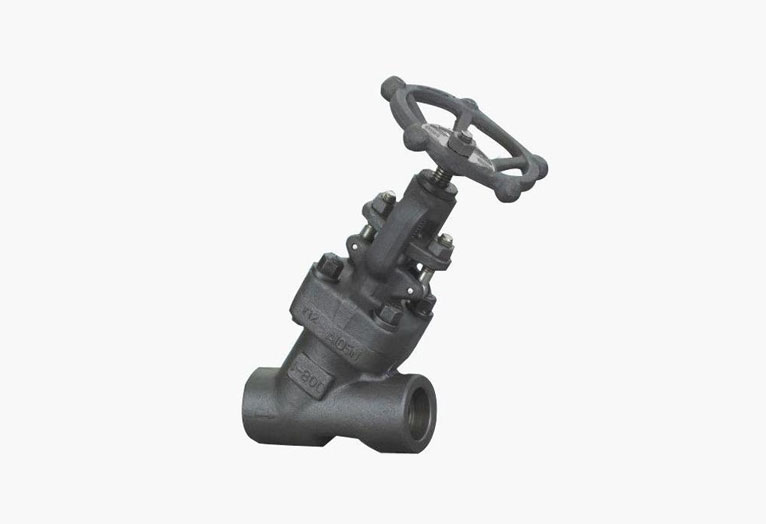

Forged steel Y-type valve is mainly used for cutting off or connecting pipeline medium in various systems of thermal power stations. Applicable media: water, steam and other non-corrosive media. Compared with other valve products, forged steel valves are characterized by high temperature and high pressure, unique self-sealing design, the higher the pressure, the more reliable the seal. Due to the special performance, technical characteristics and working conditions, the product has formed the characteristics that can not be replaced by other products.
Product structure features:
1. Pressure self-sealing Y-type globe valves and check valves conform to ANSI B16.34. Inspection and testing according to API598, marking according to MSS-SP-25.
2. Adopt the following structure.
3, full diameter or reduced diameter.
4, lift and ball type check valve.
5. Built-in spring on demand.
6. Detachable solid disc.
7, self-centering plate press sleeve type.
8, integral sealing seat.
9, clear rod support type (OS&Y).
10, bolt connection, wound gasket sealed valve cover, threaded connection, full welding sealed valve cover and threaded connection internal pressure self-tightening valve cover.
11, socket end in accordance with ASME B16.11.
12, threaded connection end (NPT) in accordance with ANSI/ASME B1.20.1.
13, disc can be transformed into needle type, throttle type, ball type, check type.

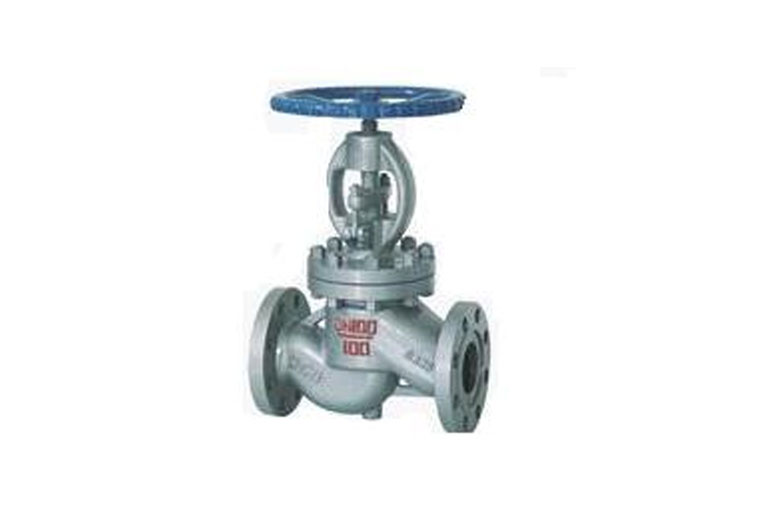

Flange globe valve is a common truncation valve, mainly used to connect or truncate the medium in the pipeline, generally not used to adjust the flow.
Flange globe valve main structural characteristics:
- According to the national standard GB12235, reasonable structure, reliable sealing, excellent performance, beautiful shape
- Sealing surface of valve disc and valve seat is made of Stetaili cobalt-based hard alloy surfacing, wear-resistant
- Valve stem after conditioning and surface nitriding treatment, have good corrosion and abrasion resistance
- Various pipe flange standards and flange sealing surface types can be used
- Valve body material variety complete, packing, gasket according to the actual conditions or user requirements reasonable selection, can be applied to a variety of pressure, temperature and medium conditions
- The reverse seal is made of threaded sealing seat or body surfacing austenitic stainless steel. The reverse seal is reliable. The replacement and maintenance of packing can be carried out without stopping the machine, which is convenient and fast
Flange globe valve performance specification parameters:
Nominal pressure: PN1.6 ~ 16.0MPa
- Nominal diameter: DN15 ~ 300mm
- Body material: cast steel/carbon steel/stainless steel (WCB/304/316/316L)
- Connection mode: flange, welding
- Operating temperature range: -20 ~ 425℃
Applicable media: water, steam, oil, nitric acid, acetic acid, etc
